Compact sanitary RTD - iTHERM TrustSens TM371

iTHERM TrustSens TM371
Compact thermometer

Metric RTD thermometer with self-calibration technology for hygienic applications

TM371

Compare

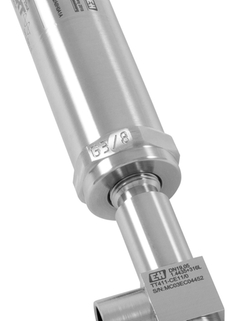

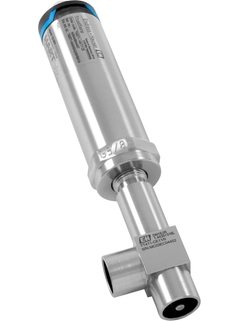

Sanitary RTD TrustSens TM371 with elbow thermowell in hygienic design — Sanitary RTDs, such as the compact TrustSens TM371 temperature measurement device, are available with special TT411 elbow thermowells in hygienic design for clean processes and accurate measurements

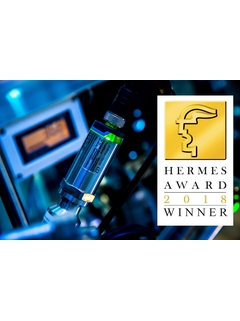

iTHERM TrustSens TM371, winner of the HERMES AWARD 2018 — Our sanitary resistance thermometer is recognized by numerous industry awards for its breakthrough technology, including the prestigious HERMES AWARD

Self-calibrating hygienic resistance thermometer with iTHERM QuickNeck — iTHERM TrustSens - innovative thermometer designed for food & beverage and life sciences industries

Sanitary RTD iTHERM TrustSens TM371 with self-calibrating function — Temperature measurement is a critcal part of sterile process applications. iTHERM TrustSens supports automation of product safety and compliance.

Green status LED of the sanitary RTD probe TrustSens TM371 — iTHERM TrustSens - The award-winning thermometer for all hygienic and aseptic applications

Compact sanitary RTD - iTHERM TrustSens TM371 with self-calibrating Pt100 sensor and iTHERM QuickNeck quick-release neck for fast insert removal

Specs at a glance

Response time

t50 = 2.5 s
t90 = 5.4 s
Max. process pressure (static)

at 20 °C: 40 bar (580 psi)
Operating temperature range

Pt100:
-40 °C to 160 °C (-40 °F to 320 °F),
optional up to 190 °C (374 °F)
reference point for automated calibration
Max. immersion length on request

up to 900.00 mm (35.4'')

See all specifications

Field of application

Our award-winning iTHERM TrustSens TM371 sanitary RTD features the world's first self-calibrating Pt100 sensor unit! The hygienic temperature transmitter with Heartbeat Technology effectively eliminates the risk of undetected non-conformities, reduces production downtime while increasing product safety and process efficiency in food, beverage and life sciences applications. The instrument complies with FDA and GMP regulations and integrates with the Netilion cloud-based Industry 4.0 ecosystem.

Designed for critical hygienic / aseptic applications in life sciences, food & beverage
RTD self-calibration in processes such as SIP, UHT, edible oil refining, industrial deep fat frying
Measuring range: -40 to 190 °C (-40 to 374 °F)
Protection class: IP65/67 or IP69
Signal output: 4 to 20 mA, HART®
Optional: Secure Bluetooth® and/or WirelessHART® (requires FieldPort SWA50)
EHEDG, ASME BPE, FDA, 3-A, 1935/2004, 2023/2006, 10/2011, CE, CRN, CSA General Purpose, Explosion protection, e.g. ATEX/IECEx

Benefits

Reduce risks and costs by implementing fully automated, traceable inline RTD sensor self-calibration; Eliminate non-conformities or undetected failures
True RTD sensor self-calibration making use of the Curie effect; Built-in, long-term stable fix point reference with complete traceability of calibration chain to ITS-90
Full instrument diagnostics, monitoring and verification with Heartbeat Technology
Automated process documentation, built-in memory for 350 calibration events; 24/7 access to printable, audit proof calibration certificates, on-site or through cloud-based system integration
Built-in 4 to 20 mA loop check function saves time and increases process safety
Highest temperature measurement precision: individual transmitter-sensor matching from factory for improved RTD accuracy

Videos

iTHERM TrustSens TM371 sanitary RTD: The world's first self-calibrating hygienic temperature transmitter
How to perform a fully automated, inline 4 to 20 mA loop check in five easy steps
Lower risk and drive automation in regulated processes using iTHERM TrustSens TM371

Get this product as part of a bundle

Bundle
iTHERM TrustSens Bluetooth and WirelessHART integration

Comfortable temperature measurement solution: iTHERM TrustSens thermometer, FieldPort SWA50 adapter
More information

Loading price

Prices temporarily unavailable

Price after login and Configuration in Cart

Price on request

activating price

price: provide information

from CHF ??.-

Price after configuration in cart

See all product related bundles

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Smart instrumentation through Heartbeat Technology

You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.
- More information
iTHERM TrustSens self-calibrating sanitary RTD sensor

A unique temperature sensor technology based on an integrated fixed-point reference element that enables reliable and accurate recalibration of the primary Pt100 RTD sensor.
- More information

Xpert selection

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

Xpert: Master your most challenging applications

Loading alternative products

Success stories

Optimized logistics concept for tank systems

We implemented a highly effective logistics concept at chemicals distributors Brenntag Schweizerhall AG's Basel site.
Read the full story
Tube skin temperature measurement

How thermometers can detect pipe overheating, lead to significant energy savings and increase process efficiency and product quality
Read the full story
Prevent grain dust ignition in bulk tanks & silos

How temperature profiling increases plant safety and product quality in bulk tanks and silos for food storage.
Read the full story
Self-calibrating thermometers in hygienic processes

This white paper explains how self-calibrating thermometers can be used in hygienic process engineering. It details theory and practice as well as application examples. Learn more!
Read the full story
Medical autoclaves

New sensor technology automates recalibrations to reduce risk in batch sterilization. Learn More!
Read the full story
