Specs at a glance
-
Max. measurement error
Mass flow (liquid): ±0.15 %
Density (liquid): ±0.0005 g/cm³ -
Measuring range
0 to 45 000 kg/h (0 to 1654 lb/min)
-
Medium temperature range
–40 to +130 °C (–40 to +266 °F)
150 °C allowed for 1 h -
Max. process pressure
PN 40
-
Wetted materials
Measuring tube:
1.4435 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈")
1.4539 (904L) (DN 8 to 40 mm (³⁄₈ to 1 ½")
Process connection
1.4435 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈")
1.4539 (904L) (DN 8 to 40 mm (³⁄₈ to 1 ½")
Field of application

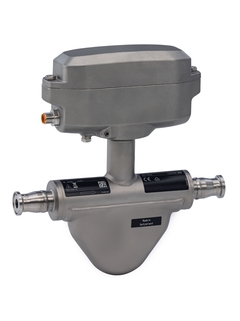

Dosimass is designed for filling and bottling applications in Food & Beverage and Life Sciences. In applications with limited space, Dosimass is the preferred choice for system integrators, skid builders and equipment manufacturers. Dosimass measures volume and mass flow directly with temperature and density compensation to ensure maximum repeatability, independent of physical fluid properties such as viscosity or density. This enables the measurement of liquids with the most diverse properties.
The lightweight sensor is available with three electronics versions:
Pulse/frequency/status version for easy and economical use in filling applications
Intelligent pulse version with IO-Link provides continuous digital communication, allowing easy commissioning and documentation, real-time availability of process data, optimization of filling conditions and predictive maintenance
Integrated batching version with Dynamic Drip Correction over Modbus RTU for advanced filling control
Benefits
High and stable filling performance – high measuring accuracy and repeatability in shortest filling times
IO-Link allows real-time digital communication for easier commissioning and continuous data availability
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Compact design for optimized machine footprint
Integrated batching functionality – filling process management solved by the flowmeter
Global compliance with industry standards – EHEDG, 3-A, FCM, cGMP
SIP and CIP cleanable
